Factory price multifunctional digital 3Dled UV2513 flatbed printer
Ricoh GEN5 & GEN6 Print Heads
Auto Media Detector Electromagnetic
6 Zones Separated Vaccum Controller
Mute Guide Rails Made In Japan
Panasonic Motor&Driver Made In Japan
White Ink Circulation
AI Visual Position Camera Auto Scan&Print

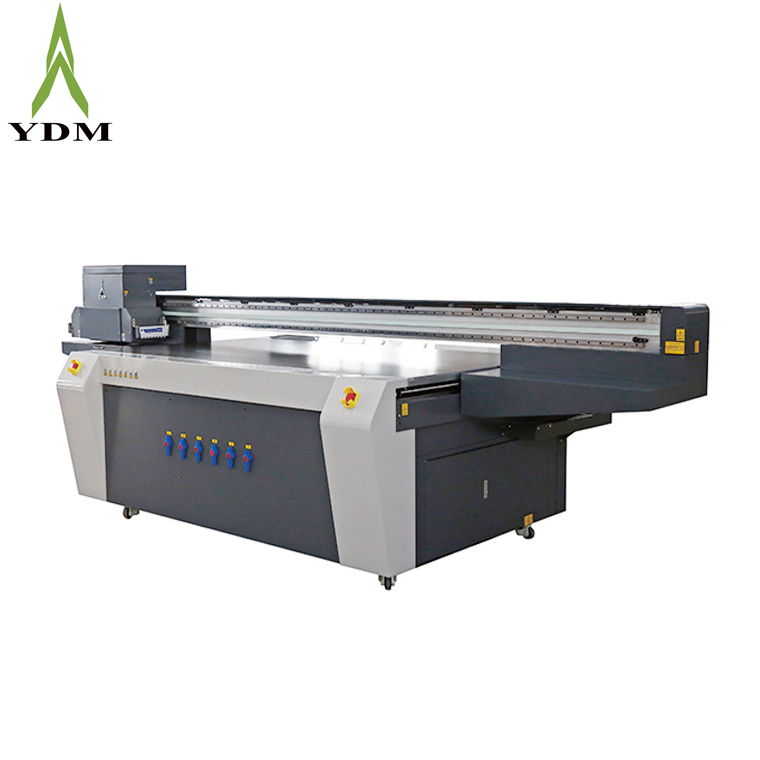

Product Picture
Product Parameters
Product Name: YDM Industrial grade 2513 flatbed printer
| Print Technology | ||
| Printer Model | 2513 UV Printer | |
| Max. Print size | 2500*1300mm | |
| Print head model | Toshiba CE4M,Ricoh G5,G6 | |
| Qty of Printhead | 4-16 pcs/2-8pcs | |
| Print Direction | Unidirectional /Bi-directional | |
| Print head height | Semi-Automatic height adjustment (option Auto) | |
| Print head cleaning | Manual cleaning system | |
| Print resolution | Toshiba CE4M4 pass: 600*600 dpi 6 pass: 600*900 dpi 8 pass: 600*1200 dpi |
RICOH G54 pass: 720*600 dpi 6 pass: 720*900 dpi 8 pass: 720*1200 dpi |
| Ink system | |
| Ink type | UV ink |
| Ink color | CMYK/ CMYK+W/CMYK+W+V/2*CMYK+2*W+2*V |
| Ink tank volume | 3.5L |
| Ink supply | Negative ink supply system |
| Drying type | Imported LED lamp curing |
| White ink stirring | Available |
| While ink circulation | Available |
| Media | |
| Media type | Acrylic/ aluminum/ ceramic/ foam board/ glass/cardboard & others |
| Max.media thickness | 100mm or customized |
| Operation | |
| Operation Language | Chinese / English |
| Operation system | Windows XP/ Windows 7/Windows 10 |
| Operation platform | Completed vacuum adsorption platform |
| Operation Environment | Temperature:20℃~28℃ Humidity:40% RH~60% RH |
| Computer configuration | System:XP,win7,win10,32/64 CPU:≥ Intel i5 RAM: ≥8GB Hard Disk: SATA 500G, NTFS CD Rom: DVD recordable Space for Disk C : ≥100 G |
| Others | |
| RIP software | UnitedFancy/Printfactory( option :Photoprint) |
| Interface | LAN |
| Color control | Comply with ICC standards with curve and density adjustment function. |
| Image format | TIFF,JPEG,POSTSCRIPT3,PDF |
| Power supply | AC220V,50/60HZ |
| Power consumption | 3.5 KW |
| Noise | Standby < 32dB Working < 65dB |
| The UV lamp | LED curing, 50000 hours long lifetime, water cooling |
product details
Toshiba CE4M print head
FOR printer, according your needs, you can choice install Toshiba CE4M or RICOH G5/G6 print head.
RICOH G5 print head
Whether you need a high-precision printer or fast printing printer, we can customize the printing solution that meet your needs.
CMYK W V can be printed at the same time,UV varnish is cured by passing it under an ultraviolet light which quickly dries and hardens the varnish, creating a super high gloss varnish and offers the highest protection between varnish, aqueous and UV. Varnishing a product with UV will make it look much more professional, as well as making it much more attractive.Varnishing increases the perceived quality of the product. In addition, it is an economical and user-friendly process that can be easily applied by adding spot finishes or additional processes to the entire sheet. It can be manipulated to achieve the desired result
Productive Process
Machine Assembly&Testing
Printe test pictures
Package Delivery
Packing Details
Packing Details
Packing Details
Application
UV printer is used mainly for printing on things like customized products and other flat surface objects. UV has a wide range of substrates that can be printed on like glass, metal, wood, plastics, ceramics and many more,Let us see some printed samples by YDM UV Printer
Bottle & Cups Printing
Bottle & Cups Printing
Phone Case Printing
Acrylic Printing
Glass Printing
Ceramic Printing
Leather Printing
Metal Printing
Wood Printing
Wood Printing
Customized Gift Box Printing
Welding Photos Printing
Canvas Printing
Marble Printing
Embossed 3D printing
For more special items printing,pls feel free to contact us directly,we will provide you professional printing solutions and quality machine with good service.
After Sale Service
YDM offers 12 MONTHS WARRANTY on our uv printing machine. We create the service group that our professional technical support will follow you via telephone, email, live chat and skype video so you can contact us on time if you have a question or run into difficulty.
TRAINING
we train and and encourage our customers to service and maintain their own printers.It is easy job for you with our professional instructions.If uv printer is sold by YDM's distributors,we will authorize them to send experienced engineers to support for the installation and collaboration when the machine arrives.
Development Path
To break trough heavy price monopoly of imported machines,we overcome all kinds of difficulties and independent production.
YDM officially established and accomplish the construction of distribution channels,market share much increased since this year.
Honored with Vise present of SSIA,New dynamic bench making enterprise,Besides,YDM is the fist one verified by CE/SGS dual certification in this field.
YDM UV Industrial grade printing machine enjoys high reputation since it launched to market.
Deepen the cooperation with Toshiba,Ricoh,Hoson,KNFUN,UMC and other companies to ensure the machine configuration always ranked ahead.
Actively participate global competition,totally exported to more than 50 countries and regions.
Developed industry grade machine with G6 heads.
