YDM Conveyor Hybrid UV Printer D2000


  • YDM Conveyor Hybrid UV Printer D2000
  • YDM Conveyor Hybrid UV Printer D2000
  • YDM Conveyor Hybrid UV Printer D2000
  • YDM Conveyor Hybrid UV Printer D2000

Product Detail

Product Picture

Front

Back

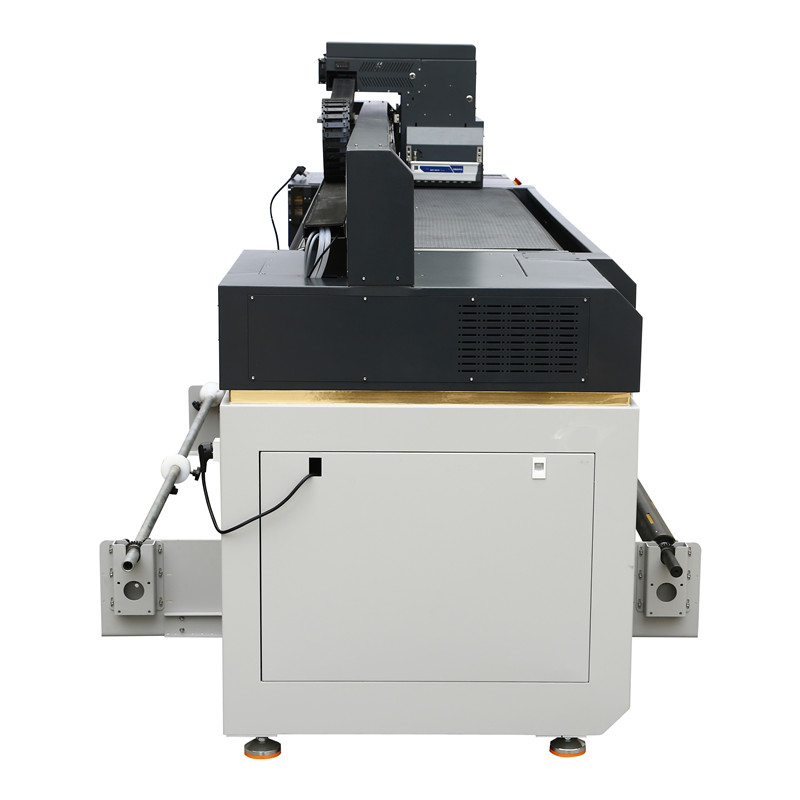

Left

Right

Product Parameters

Product Name: D2000 Hybrid Flatbed&roll to roll printer

Print Technology
Print Format   180 cm
Print Height   8.5 cm
Head Model   2-8 PCS RICOH G5
Color Set   CMYK+W+V
Control System  UMC
RIP Software  Printfactory
Print Direction  Uni/ Bi-directional, Front/ Rear Alternative
Resolution 4  PASS : 720 x 600 dpi
6  PASS : 720 x 900 dpi
8  PASS : 720 x 1200dpi
Print Speed Production mode: 34-17 sq.m/h
Quality mode: 25.7-12.83 sq.m/h
High resolution mode:17- 8.5 sq.m/h
Machine Highlight
Heavy Duty Frame Strengthened Aluminum beam & metal base
Driving Mode HIWIN linear rail + Leadshine Servo motor +  Import Drag chain
Feeding & taking up Mode roll to roll roller and Conveyor belt
Work Table Anodized aluminum Table +Vaccum Motor
Ink System Negative pressure Ink supply + White Ink stirring and circulation + Ink-lack Warning
Curing System Imported LED lamp, 30000 hours lifespan, Water cooling Chiller
Head Cleaning Automatic by Program / Positive Pressure Clean
Height Detection Semi-Automatic sensor
Others
PC Configuration Win7/ Win10, 64 bit, CPU≥ i5, RAM ≥8GB, Space for Disk C≥100G
Signal Transmission  USB 2.0
Color Control Comply with ICC standards, with curve and density adjustment function
File Format TIFF/ JPEG/ POSTSCRIPT3/ PDF
Power Supply AC220V,50/ 60HZ
Noise Standby < 32 dB ; Working < 65 dB
Machine Size 3.3 m x 1.5 m x 1.57 m
Packing Size 3.5 m x 1.7 m x 1.8 m
Net Weight 840 KG
Gross Weight 1000 KG

product details

CMYK ,W, V available and optional , Ricoh G5 industrial grade printhead ensure the print effect and speed , printhead lifespan 3-5yeas . for flat and roll material both can be printed.Expanded the  function of uv printer.

D2000 (1)

SHANGHAI ROYAL Mother Board

 Mature and reliable ROYAL uv printing  mother board ,easy operate ,high degree of automation

D2000 (2)

Static Eliminator

The static eliminator eliminates the interference of static electricity to ensure that the printing effect is not affected by static electricity

D2000 (4)

Guide Rail

Double mute imported rail ensure mute ,accurate and smooth movement of carriage Provides prerequisites for high-quality and high-precision printing

D2000 (3)

Pneumatic Shaft

Material sending and collective shaft for roll material installed pneumatic locker, Safely and efficiently solve the material sending  and collecting .

OEM available always for you based on our rich experience in uv printer since 2005’s.OEM available always for you based on our rich experience in uv printer since 2005’s.

0b7b02087bf40ad17215eea14971cbdaa8ecce65
3b292df5e0fe9925c2cc74c22df584da8fb171c6
d31b0ef41bd5ad6e64654ed4a596e3deb7fd3cd6
d5ceb1bd798549f5a91be03ba08f3947
yicai--10

CMYK W V can be printed at the one time,UV varnish is cured by passing it under an ultraviolet light which quickly dries and hardens the varnish, creating a super high gloss varnish and offers the highest protection between varnish, aqueous and UV. Varnishing a product with UV will make it look much more professional, as well as making it much more attractive.Varnishing increases the perceived quality of the product. In addition, it is an economical and user-friendly process that can be easily applied by adding spot finishes or additional processes to the entire sheet. It can be manipulated to achieve the desired result

yicai2--1

Productive Process

Machine Assembly&Testing

01 Machine Dynamic Design

02 Raw Materials Preparation

03 Nc Sawing Processing

04 Machine Modular Cutting Processing

05 Accessories Processing

06 Lathe Bed Processing

07 Aluminum Crossbeam Process

08 Welding Process

Printe test pictures

Package Delivery

Application

UV printer is used mainly for printing on things like customized products and other flat surface objects. UV has a wide range of substrates that can be printed on like glass, metal, wood, plastics, ceramics and many more,Let us see some printed samples by YDM UV Printer

Acrylic Printing

Glass Printing

Ceramic Printing

Leather Printing

Metal Printing

Wood Printing

Wood Printing

Customized Gift Box Printing

Welding Photos Printing

Canvas Printing

Marble Printing

Embossed 3D printing

For more special items printing,pls feel free to contact us directly,we will provide you professional printing solutions and quality machine with good service.

After Sale Service

Tech Support

As the manufacturer of printing machine,YDM development always depends on the needs from customers,we provide the training for customers freely,and instructions that how to install the uv printer step by step.

On-Site Installation

We also provide our international customers with the on-site installation based on the customers’ need,or authorize our distributors to install the printing machine.

Online Service

Whatsapp/Wechat/Skype/Email and others available,and remote operation will fix the problems on time to save your maintenance cost.

YDM offers 12 MONTHS WARRANTY on our uv printing machine. We create the service group that our professional technical support will follow you via telephone, email, live chat and skype video so you can contact us on time if you have a question or run into difficulty.

TRAINING
we train and and encourage our customers to service and maintain their own printers.It is easy job for you with our professional instructions.If uv printer is sold by YDM's distributors,we will authorize them to send experienced engineers to support for the installation and collaboration when the machine arrives.
