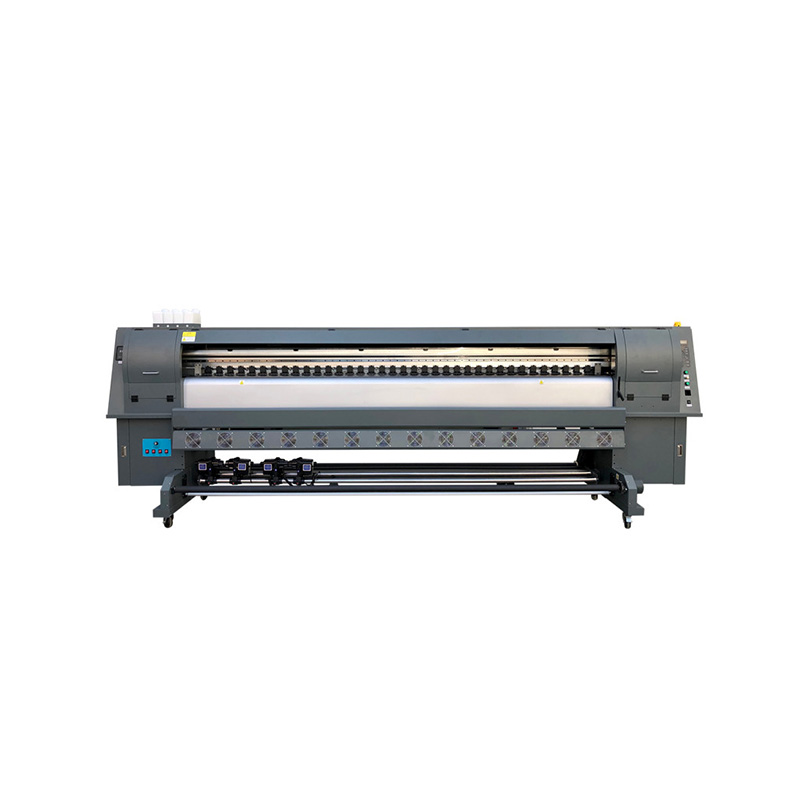

YDM eco-solvent /UV roll to roll printer 3.2m E3200 pro


  • YDM eco-solvent /UV roll to roll printer 3.2m E3200 pro
  • YDM eco-solvent /UV roll to roll printer 3.2m E3200 pro
  • YDM eco-solvent /UV roll to roll printer 3.2m E3200 pro

Product Detail

Product Picture

Back

Left

Right

Product Parameters

Product Name: YDM eco-solvent /UV roll to roll printer 3.2m E3200 pro

Print Technology
Print Format 320 cm/ 10 ft
Print Height 2mm
Head Model 1-2 pcs Epson DX5/ DX7/ XP600/I3200
Color Set CMYK /2* CMYK/ CMYK+LC+LM
Control System HOSON
RIP Software Riprint
Print Direction Uni/ Bi-directional
Resolution 4 PASS : 720 x 720 dpi
6 PASS : 720 x 1080 dpi
8 PASS : 720 x 1440 dpi
Print Speed Production mode: 20-25 sq.m/ h
Quality mode: 15-20 sq.m/ h
High resolution mode: 10-15 sq.m/ h
Machine Highlight
Heavy Duty Frame Strengthened aluminum beam
Driving Mode Imported linear rail + Servo motor +Imported Drag chain
Work Table Pinch roller+Anodized aluminum table
Ink type Eco-solvent ink
Ink Supply System Continuous ink supply
Curing System Intelligent front, middle and post infrared heating, with drying fan
Others
Print Media PVC banner, self adhesive vinyl, coated paper, polypropylene, polystyrene,
poly carbonate, polyester, textile (non porous), canvas, etc
PC configuration Win7/ Win10, 64 bit, CPU≥ i5, RAM ≥8GB, Space for Disk C≥100G
Signal Transmission Optical Fiber + USB 2.0
Color Control Comply with ICC standards, With curve and density Adjustment function
File Format TIFF/ JPEG/ POSTSCRIPT3/ PDF
Power Supply AC220V,50/60HZ
Working Power 3.0 KW
Noise Standby < 32 dB ; Working < 65 dB

product details

YDM Large Format 3.2m Eco-solvent Printer Epson DX5/DX7/XP600 printheads optional, It has  stable performance, wide application range and cost effective features., color set is CMYK/ 2*CMYK.  It's easy for you to install and starting printing with our guidances&support .Our eco-solvent roll to roll can be upgrade to UV roll to roll printer by adding UV curing system.

5

Vacuum Platform

 Vacuum platform can make the media on the platform more flat to keep printing much smoothly and safely instead of glass platform

IMG_20200829_160130

District heating system

Control different area heating with digital temperature control system , Maximum control and reduction of temperature effects

IMG_20200829_160516

Automatic feeding and collecting syatem

The automatic rewinding and unwinding system can automatically carry out rewinding and unwinding operations according to printing needs, making the printing work simpler and more efficient

3

Operation buttons

These convenient operation buttons on the machine .Easy operation,save your operation time always.

OEM available always for you based on our rich experience in uv printer since 2005’s.
