YDM Epson i3200 Heads 1316 UV Flatbed Printer lfd

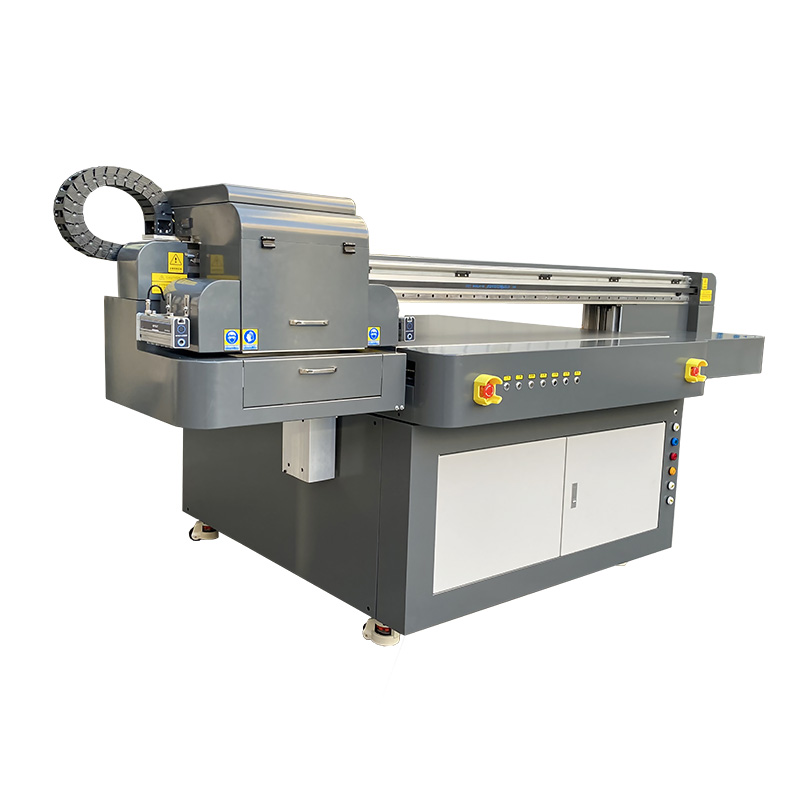

Product Picture
Product Parameters
Product Name: 1.3m*1.3m Flatbed UV Printer
|
Print Technology |
|
|
Printer Model |
1316 UV Printer |
|
Max. Print size |
1300*1300mm |
|
Print head model |
Epson/Toshiba CE4M,Ricoh G5,G6 |
|
Qty of Printhead |
1-3 pcs/2-4pcs |
|
Print Direction |
Unidirectional /Biodirectional |
|
Print head height |
Automatic height adjustment |
|
Print head cleaning |
Auto cleaning system |
|
Print resolution |
4 pass: 720*720 dpi 6 pass: 720*1080 dpi 8 pass: 720*1440 dpi |
| Ink system | |
|
Ink type |
UV ink |
|
Ink color |
CMYK/ CMYK+W/CMYK+W+V/CMYK+W+V+LC+LM |
|
Ink tank volumn |
1L |
|
Ink supply |
General ink supply system |
|
Drying type |
Imported LED lamp curing |
|
White ink stirring |
Available |
|
While ink circulation |
Available |
| Media | |
|
Media type |
Acrylic/ aluminum/ ceramic/ foam board/ glass/cardboard & others |
|
Max.media thickness |
100mm or customized |
| Operation | |
|
Operation Language |
Chinese / English |
|
Operation system |
Windows XP/ Windows 7/Windows 10 |
|
Operation platform |
Completed vacuum adsorption platform |
|
Operation Environment |
Temperature:20℃~28℃ Humidity:40% RH~60% RH |
|
Computer configuration |
System:XP,win7,win10,32/64 CPU:≥ Intel i5 RAM: ≥8GB Hard Disk: SATA 500G, NTFS CD Rom: DVD recordable Space for Disk C : ≥100 G |
| Others | |
|
RIP software |
RIPRint/UnitedFancy/Photoprint |
|
Interface |
LAN |
|
Color control |
Comply with ICC standards with curve and density adjustment function. |
|
Image format |
TIFF,JPEG,POSTSCRIPT3,PDF |
|
Power supply |
AC220V,50/60HZ |
|
Power consumption |
1 KW |
|
Noise |
Standby < 32dB Working < 65dB |
|
The UV lamp |
LED curing, 50000 hours long lifetime, water cooling |
product details
As the industry grade small format uv flatbed printer,YDM 1316 uv printer will be the best choice for you to increase your business with outstanding working performance,this upgraded model machine is equipped with Static eliminator device,auto height measurement,convenient buttons replaced of screen,etc.Easy set-up,Easy operation,Easy maintenance.
For Epson i3200, MEMS manufacturing and thin film piezo element can realize high precision and high density (600 npi/2 rows of nozzles). Contributes to compact, high speed, high quality, and high image quality.
↾High Resolution ↾High Durable ↾Various Gray-level ↾Original Quality
Precision made of Epson unique MEMS nozzles and an ink flow path ensure the perfectly round ink droplets are placed accurately and consistently
YDM 1316 UV printer is available for CMYK W V,and For this color set CMYK W V (Cyan/Magenta/Yellow/Black/White/Varnish) can be printed simultaneously ,and printed UV varnish is cured by passing it under an ultraviolet light which dries and hardens the varnish instantly , printing a pretty high glossy varnish and provides the highest protection between varnish , aqueous and UV . Varnish as a transparent protective paint , printed Varnish with hardness and wear resistance is better than other normal printed color , can play a good protective effect . By the way ,Varnish has good luminosity and brightness , can make the coating always maintain a good sense of brightness . And varnish is also hand paint , it will make the printed object more amazing as the decoration usage .
Productive Process
Machine Assembly&Testing
Machine Components Preparation
Assembly
48 Hours Running Testing
Printing Effect Confirm
Package Delivery
Packing Details
Packing Details
Loading Container
Application
Bottle & Cups Printing
Bottle & Cups Printing
Phone Case Printing
Whether you are running a comprehensive printing and sign store , just starting or working at home , our existing UV printer inventory provides a number of different options , you can use these options to the UV curing ink printed to the following , golf, logo, wedding gifts, souvenirs, glass splash backs, wood floor,basedboard or any other you may need to enterprise brand , industry , or promotional literature .
Acrylic Printing
Glass Printing
Ceramic Printing
Leather Printing
Metal Printing
Wall Panel Printing
Wood Printing
Customized Gift Box Printing
Wedding Objects Printing
Canvas Printing
Marble Printing
Embossed 3D printing
For more special items printing,pls feel free to contact us directly,we will provide you professional printing solutions and quality machine with good service.
After Sale Service
YDM offers 12 MONTHS WARRANTY on our uv printing machine. We create the service group that our professional technical support will follow you via telephone, email, live chat and skype video so you can contact us on time if you have a question or run into difficulty.
Training
we train and and encourage our customers to service and maintain their own printers.It is easy job for you with our professional instructions.If uv printer is sold by YDM's distributors,we will authorize them to send experienced engineers to support for the installation and collaboration when the machine arrives.
Development Path
To break trough heavy price monopoly of imported machines,we overcome all kinds of difficulties and independent production.
YDM officially established and accomplish the construction of distribution channels,market share much increased since this year.
Honored with Vise present of SSIA,New dynamic bench making enterprise,Besides,YDM is the fist one verified by CE/SGS dual certification in this field.
YDM UV Industrial grade printing machine enjoys high reputation since it launched to market.
Deepen the cooperation with Toshiba,Ricoh,Hoson,KNFUN,UMC and other companies to ensure the machine configuration always ranked ahead.
Actively participate global competition,totally exported to more than 50 countries and regions.
Developed industry grade machine with G6 heads.
2021- Developed double spray roll to roll machine.
2025- Our Goal is to build YDM into a world renowned inkjet printer manufacturer upon company 20th anniversary.
