YDM Industrial Grade 2513pro Flatbed Printer

2513pro UV Flatbed Printer offers a comprehensive solution for custom printing businesses, providing state-of-the-art equipment that revolutionizes the way you think about printing. With its advanced printing capabilities, compact design, and user-friendly features, UV Flatbed Printer 2513pro is the perfect choice for small and large-batch production. Whether you want to print on plastics, metals, glass, ceramics, or other materials, this printer can deliver exceptional results quickly and efficiently. Our goal is to help businesses increase their flexibility and productivity, and we are confident that YDM is the right solution for achieving those objectives.

Send email to us

Product Detail

Product Picture

Front

Back

Left

Right

Product Parameters

Product Name: YDM Industrial Grade 2513pro Flatbed Printer

Print Technology
Printer Model	2513pro UV Printer
Max. Print size	25001300mm/84ft
Print head model	Toshiba CE4M,Ricoh G5,G6
Qty of Printhead	4-16 pcs/2-8pcs
Print Direction	Unidirectional /Bi-directional
Print head height	Semi-Automatic height adjustment (option Auto)
Print head cleaning	Manual cleaning system
Print resolution	Toshiba CE4M 4 pass: 600600 dpi 6 pass: 600900 dpi 8 pass: 600*1200 dpi	RICOH G5 4 pass: 720600 dpi 6 pass: 720900 dpi 8 pass: 720*1200 dpi
Print Speed (sqm/h)G5 heads	G5 heads4 pass: 15 sqm/h 6 pass: 12 sqm/h8 pass: 8 sqm/h	G6 heads,Maglev4 pass: 25 sqm/h 6 pass: 20 sqm/h8 pass: 15 sqm/h

Ink System
Ink type	UV ink
Ink color	CMYK/ CMYK+W/CMYK+W+V/2CMYK+2W+2*V
Ink tank volume	3.5L
Ink supply	Negative ink supply system
Drying type	Imported LED lamp curing
White ink stirring	Available
While ink circulation	Available

Media
Media type	Acrylic/ aluminum/ ceramic/ foam board/ glass/cardboard & others
Max.media thickness	100mm or customized
Operation
Operation Language	Chinese / English
Operation system	Windows XP/ Windows 7/Windows 10
Operation platform	Completed vacuum adsorption platform
Operation Environment	Temperature:20℃~28℃ Humidity:40% RH~60% RH
Computer configuration	System:XP,win7,win10,32/64 CPU:≥ Intel i5 RAM: ≥8GB Hard Disk: SATA 500G, NTFS CD Rom: DVD recordable Space for Disk C : ≥100 G

Others
RIP software	UnitedFancy/Printfactory( option :Photoprint)
Interface	LAN
Color control	Comply with ICC standards with curve and density adjustment function.
Image format	TIFF,JPEG,POSTSCRIPT3,PDF
Power supply	AC220V,50/60HZ
Power consumption	3.5 KW
Noise	Standby < 32dB； Working < 65dB
The UV lamp	LED curing, 50000 hours long lifetime, water cooling

product details

Vacuum Platform

Antioxidative vacuum platform with double teflon coating treatment,light weight with high hardness surface,scrath resistance and corrosion resistance,And mechanical alignment point to make sure the consistent media placement accurately.

Carriage

Newly designed lightweight carriage, OEEPO or AP&T static eliminator, temperature controller, head cleaning button and carriage anti-collision device to ensure more stable and accurate printing.

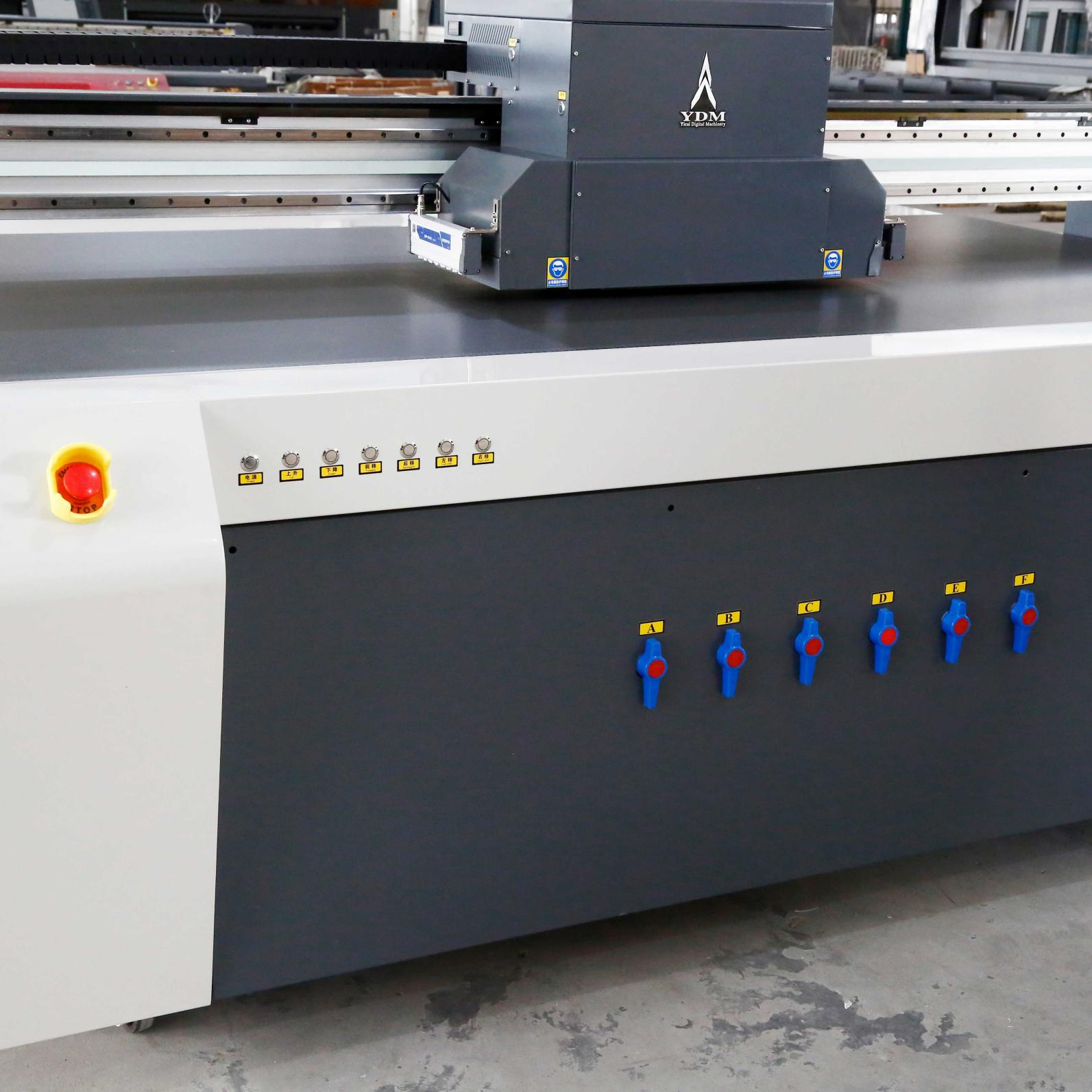

Humanized Operation Design

The emergency stop button can protect the safety of personnel more effectively.
Convenient operation buttons make it easier for operators to operate.
6 PCS zone buttons, can get greater adsorption power and save electricity.

Large Volume Ink Tank

The 3.5 L large-volume ink tanks are equipped with ink lack alarm, which can meet the continuous production of 24 hours.

OEM Available Always For You Based On Our Rich Experience In UV Printer Since 2005’s.

For this model flatbed UV printer,We provide various option with you in the heads choice,like Epson Series printheads (such as F 1080-A1, L1440-A1, F1440-A1 or I 3200-U1 print head), Toshiba CE4M or RICOH G5i printhead available based on your different needs.

Whether you need a high-precision printer or fast printing printer, we can customize the printing solution that meet your needs.

UV printer play the important role in decoration industry day by day,so the varnish printing is popular as the general configuration customers choose.For YDM A1 UV Printer,this digital printer can print CMYK W V layer by layer at same time,dont need the second printing any more.this technology reduce the printing time to save your time cost effectively.As the main function in texture printing,W-white is the one color that you have to choose,which makes the 3D embossing printing more easily.Varnish will make the 3D effect more outstanding,Moreover,varnish printing technology can achieve the customized desired result in glossy&luxurious effect.Whether you’re running a advertising sign or customized decoration shop,uv flatbed printer is the best choice for your business.

Productive Process

Machine Components Preparation

01 Machine Dynamic Design

02 Raw Materials Preparation

03 Nc Sawing Processing

04 Machine Modular Cutting Processing

05 Accessories Processing

06 Lathe Bed Processing

07 Aluminum Crossbeam Process

08 Welding Process

Machine Assembly&Testing

Assembly

48 Hours Running Testing

Printing Effect Confirm

Package Delivery

Application

YDM branded Flatbed UV printer uses fast and instant drying technology to allow you to 3D Embossed printing . Texture printing allows you to build quality printing layer by layer with quality inks . You'll turn ordinary into something special , including custom textured smart phone cases , custom pens , trophies ,gifts and others . There is a wide range of products to decorate . Utilize textured printing to create stunning raised prints .

Bottle & Cups Printing

Phone Case Printing

For more special items printing,pls feel free to contact us directly,we will provide you professional printing solutions and quality machine with good service.

Acrylic Printing

Glass Printing

Ceramic Printing

Leather Printing

Metal Printing

Wood Printing

Customized Gift Box Printing

Wedding Object Printing

Canvas Printing

Marble Printing

Embossed 3D printing
